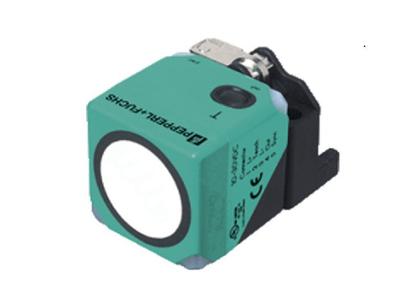

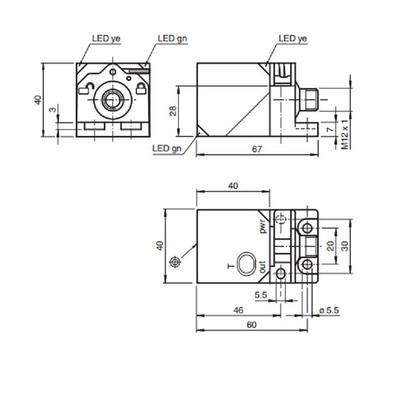

Sensor Ultrassônico Pepperl Fuchs UC4000-L2-E5-V15

Sensor Ultrassônico Pepperl Fuchs UC4000-L2-E5-V15

Marca: Pepperl Fuchs

Modelo: UC4000-L2-E5-V15

Referência: 277773

Technical Data

General specifications

Sensing range 200 ... 4000 mm

Adjustment range 240 ... 4000 mm

Dead band 0 ... 200 mm

Standard target plate 100 mm x 100 mm

Transducer frequency approx. 85 kHz

Nominal ratings

Response delay minimum: 110 ms

factory setting: 280 ms

Time delay before availability tv menor ou igual 1600 ms

Indicators/operating means

Technical Data

LED green Operating display

LED yellow switching state

LED red error

Electrical specifications

Operating voltage UB 10 ... 30 V DC , ripple 10 %SS

No-load supply current I0 menor ou igual 50 mA

Interface

Interface type Serial interface (programming adapter required)

9600 BPS, no parity, 8 data bits, 1 stop bit

Input/Output

Input/output type 1 synchronization connection, bidirectional

0 Level 0 ... 1 V

1 Level 4 V ... UB

Input impedance > 12 kohmes

Output rated operating current menor que 12 mA

Pulse length 0.5 ... 300 ms (level 1)

Pulse interval maior ou igual 62.5 ms (level 0)

Synchronization frequency

Common mode operation menor ou igual 16 Hz

Multiplex operation menor ou igual 17 Hz / n , n = number of sensors , n menor ou igual 10

(factory setting: n = 5 )

Input

Input type 1 program input

Level (switch point 1) 0 ... 1 V

Level (switch point 2) 4 V ... UB

Input impedance maior que 10 kohmes

Pulse length 2 ... 10 s

Output

Output type 1 switching output E5, PNP NO/NC, programmable

Rated operating current Ie 200 mA , short-circuit/overload protected

Voltage drop Ud menor ou igual 2 V

Repeat accuracy menor ou igual 0.1 % of full-scale value

Switching frequency f menor ou igual 2.8 Hz

Range hysteresis H programmable , preset to 1 mm

Temperature influence menor que 1.5 % of full-scale value

Compliance with standards and directives

Standard conformity

Standards EN 60947-5-2:2007+A1:2012

IEC 60947-5-2:2007 + A1:2012

Approvals and certificates

UL approval cULus Listed, General Purpose

CCC approval CCC approval / marking not required for products rated menor ou igual 36 V

Ambient conditions

Ambient temperature -25 ... 70 °C (-13 ... 158 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Connection type Connector plug M12 x 1 , 5-pin

Degree of protection IP67

Material

Housing PA-GF35

Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam

Mass 120 g

Factory settings
