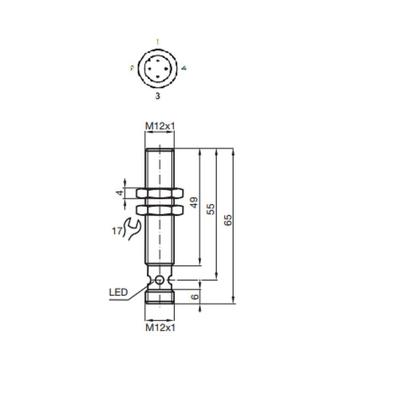

Sensor Indutivo Pepperl Fuchs NBB4-12GM50-E2-V1 PNP 4mm

Sensor Indutivo Pepperl Fuchs NBB4-12GM50-E2-V1 PNP 4mm

Marca: Pepperl Fuchs

Modelo: NBB4-12GM50-E2-V1

Referência: 800735

Technical Data

General specifications

Switching function Normally open (NO)

Output type PNP

Rated operating distance sn 4 mm

Installation flush

Output polarity DC

Assured operating distance sa 0 ... 3.24 mm ( -25 ... 70 °C (-13 ... 158 °F) )

0 ... 3.04 mm ( -40 ... -25 °C (-40 ... -13 °F) )

Reduction factor rAl 0.39

Reduction factor rCu 0.35

Reduction factor r304 0.75

Reduction factor rBrass 0.49

Output type 3-wire

Nominal ratings

Operating voltage UB 10 ... 30 V

Switching frequency f 0 ... 800 Hz

Hysteresis H typ. 5%

Reverse polarity protection reverse polarity protected

Short-circuit protection pulsing

Voltage drop Ud menor ou igual 3 V

Operating current IL 0 ... 200 mA

Off-state current Ir 0 ... 0.5 mA typ. 0.1 microA at 25 °C

No-load supply current I0 menor ou igual 15 mA

Time delay before availability tv menor ou igual 5 ms

Switching state indicator Multihole-LED, yellow

Functional safety related parameters

MTTFd 1820 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Compliance with standards and directives

Standard conformity

Standards EN 60947-5-2:2007

EN 60947-5-2/A1:2012

IEC 60947-5-2:2007

IEC 60947-5-2 AMD 1:2012

Approvals and certificates

EAC conformity TR CU 020/2011

UL approval cULus Listed, General Purpose

CSA approval cCSAus Listed, General Purpose

CCC approval CCC approval / marking not required for products rated menor ou igual 36 V

Ambient conditions

Ambient temperature -40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Connection type Connector plug M12 x 1 , 4-pin

Housing material brass, nickel-plated

Sensing face PBT

Degree of protection IP67

General information

Scope of delivery 2 self locking nuts in scope of delivery
