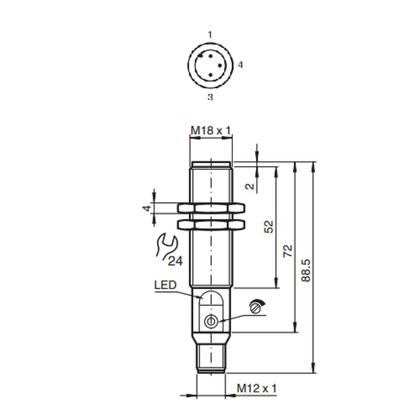

Sensor Indutivo Pepperl Fuchs CBB8-18GK75-E2-V1 PNP 8mm

Sensor Indutivo Pepperl Fuchs CBB8-18GK75-E2-V1 PNP 8mm

Marca: Pepperl Fuchs

Modelo: CBB8-18GK75-E2-V1

Referência: 237039

Technical Data

General specifications

Switching function Normally open (NO)

Output type PNP

Rated operating distance sn 1 ... 8 mm

Installation flush

Output polarity DC

Output type 3-wire

Nominal ratings

Installation conditions

A 0 mm

B 0 mm

C 16 mm

F 36 mm

Operating voltage UB 10 ... 30 V

Switching frequency f 0 ... 100 Hz

Reverse polarity protection reverse polarity protected

Short-circuit protection pulsing

Voltage drop Ud menor ou igual 1.5 V

Temperature drift max. 20 % at -5 ... 55 °C (23 ... 131 °F)

Operating current IL 0 ... 100 mA

No-load supply current I0 menor ou igual 18 mA

Time delay before availability tv max. 300 ms

Functional safety related parameters

MTTFd 343 a

Mission Time (TM) 20 a

Diagnostic Coverage (DC) 0 %

Indicators/operating means

LED green Operating display

LED yellow indication switching state

Potentiometer sensitivity adjustment

Compliance with standards and directives

Standard conformity

Standards EN 60947-5-2:2007

EN 60947-5-2/A1:2012

IEC 60947-5-2:2007

IEC 60947-5-2 AMD 1:2012

Approvals and certificates

Protection class II

UL approval cULus Listed, General Purpose

CCC approval CCC approval / marking not required for products rated menor ou igual 36 V

Ambient conditions

Ambient temperature -25 ... 85 °C (-13 ... 185 °F)

Mechanical specifications

Connection type Connector plug M12 x 1 , 3-pin

Housing material PBT

Sensing face PBT

Degree of protection IP67
