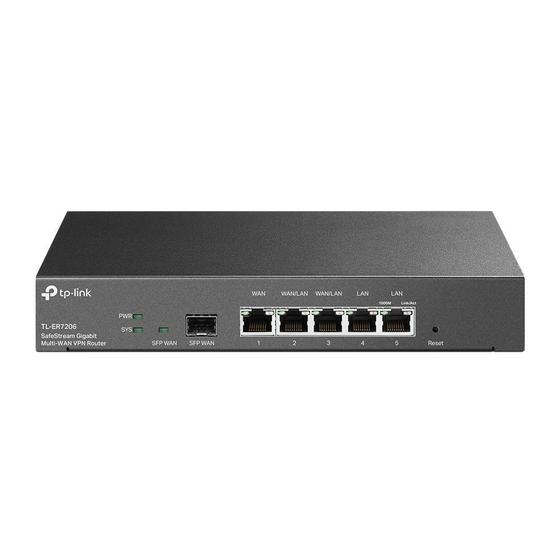

Roteador Banda Larga TP-LINK TL-ER7206 Gigabit Omada Multi-WAN VPN SafeStream

O QUE ESSE PRODUTO FAZ:

O roteador TL-ER7206 foi desenvolvido com gerenciamento centralizado, com acesso á nuvem e ao aplicativo Omada para uma ultra conveniência e fácil gerenciamento. Com portas SFP de 1 Gigabit e portas RJ45 de 5 Gigabit que fornecem conectividade com fio de alta velocidade, além de até 4 portas WAN. Omada cria uma rede altamente ordenada, sendo tudo controlado a partir de uma única interface, ideais para uso em hospitalidade, educação, varejo, escritórios entro outros. Com grandes recursos de segurança para proteger sua rede e dados.

• • • • • • • • • • • • • • • • • • • • • • • • •

DESCRICÃO:

Protocolos e Normas

IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, http, https, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface

1 Fixed Gigabit SFP WAN Port

1 Fixed Gigabit RJ45 WAN Port

2 Fixed Gigabit RJ45 LAN Ports

2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100? STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Botão

Reset Button

Fonte de alimentação

100–240 V~50/60 Hz

Flash

SPI 4MB + NAND 128MB

DRAM

512MB

LED

PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensões (L x P x A)

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Concurrent Session

150,000

IPsec VPN Throughput

291.6 Mbps

WAN Connection Type

Static/Dynamic IP

PPPoE

PPTP

L2TP

MAC Clone

Modify WAN/LAN MAC Address†

DHCP

DHCP Server

DHCP Address Reservation

Multi-IP Interfaces*

Multi-Net DHCP*

IPv6

Developing‡

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy

ACL

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

Static Routing

Policy Routing

Bandwidth Control

IP/Port-based Bandwidth Control

Guarantee & Limited Bandwidth

Load Balance

Intelligent Load Balance

Application Optimized Routing

Link Backup (Timing§, Failover)

Online Detection

NAT

One-to-One NAT§

Multi-Net NAT

Virtual Server

Port Triggering§

NAT-DMZ

FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security

SPI Firewall

VPN Passthrough

FTP/H.323/PPTP/SIP/IPsec ALG

DoS Defence, Ping of Death

Local Management

Session Limit

IP-based Session Limit

IPsec VPN

100 IPSec VPN Tunnels

LAN-to-LAN, Client-to-LAN

Main, Aggressive Negotiation Mode

DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

IKEv1/v2*

MD5, SHA1 Authentication Algorithm

NAT Traversal (NAT-T)

Dead Peer Detection (DPD)

Perfect Forward Secrecy (PFS)

PPTP VPN

PPTP VPN Server

10 PPTP VPN Clients

50 Tunnels

PPTP with MPPE Encryption

L2TP VPN

L2TP VPN Server

10 L2TP VPN Clients

50 Tunnels

L2TP over IPSec

OpenVPN

OpenVPN Server*

10 OpenVPN Clients*

50 OpenVPN Tunnels*

Filtering

WEB Group Filtering§

URL Filtering

Web Security§

ARP Inspection

Sending GARP Packets§

ARP Scanning§

IP-MAC Binding§

Attack Defense

TCP/UDP/ICMP Flood Defense

Block TCP Scan (Stealth FIN/Xmas/Null)

Block Ping from WAN

Access Control

Source/Destination IP Based Access Control

Web Authentication

No Authentication

Simple Password*

Hotspot?Local User / Voucher* / SMS* / Radius*?

External Radius Sever

External Portal Sever*

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance

Web Management Interface

Remote Management

Export & Import Configuration

SNMP v1/v2c/v3*

Diagnostics (Ping & Traceroute)§

NTP Synchronize§

Syslog Support

Management Features

Automatic Device Discovery

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

Captive Portal Configuration

ZTP (Zero-Touch Provisioning)**

Certificações

CE, FCC, RoHS

• • • • • • • • • • • • • • • • • • • • • • • • •

ITENS INCLUSOS:

01- Roteador Banda Larga TP-LINK TL-ER7206 Gigabit Omada Multi-WAN VPN SafeStream

01- Cabo de alimentação

01- Guia de Instalação Rápida

• • • • • • • • • • • • • • • • • • • • • • • • •
