Placa Mae MSI B550M PRO-VDH WIFI (AM4/4xDDR4/HDMI/DisplayPort/VGA/M.2/USB 3.2)

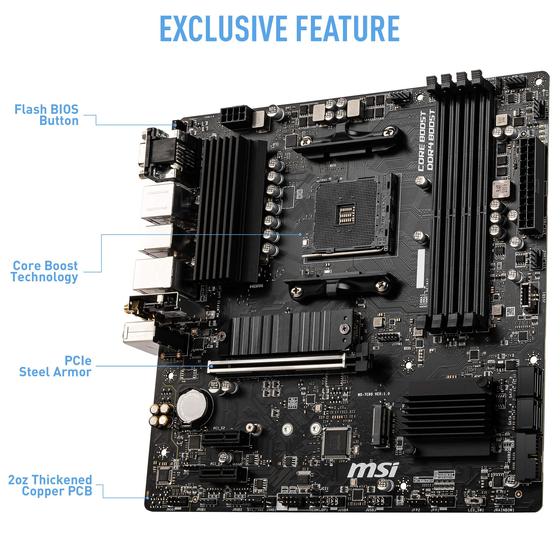

SPECIFICATIONS Model Name B550M PRO-VDH WIFI CPU Support Support for 3rd Gen AMD® RyzenTM processors and future AMD® RyzenTM processors with BIOS update CPU Socket AMD Socket AM4 Chipset AMD® B550 Chipset Graphics Interface 1x PCIe 4.0 / 3.0 x16 slot Display Interface DisplayPort, HDMITM, VGA – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4400 MHz (OC) Expansion Slots 2x PCI-E 3.0 x1 slots, Storage 1x M.2 Gen4 x4 slot, 1x M.2 Gen3 x4 slot, 4x SATA 6Gb/s ports USB ports 7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C) + 6x USB 2.0 LAN Realtek® RTL8111HN Gigabit LAN Wi-Fi / Bluetooth Wi-Fi AC, Bluetooth 4.2 Audio 8-Channel (7.1) HD Audio with Audio Boost FEATURES PCI-E Steel Armor Protecting VGA cards against bending and EMI Mystic Light Extension Control additional RGB or Rainbow strip added to your system with Dragon Center. M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. Core Boost With premium layout and fully digital power design to support more cores and provide better performance. Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience. DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability. 2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability
