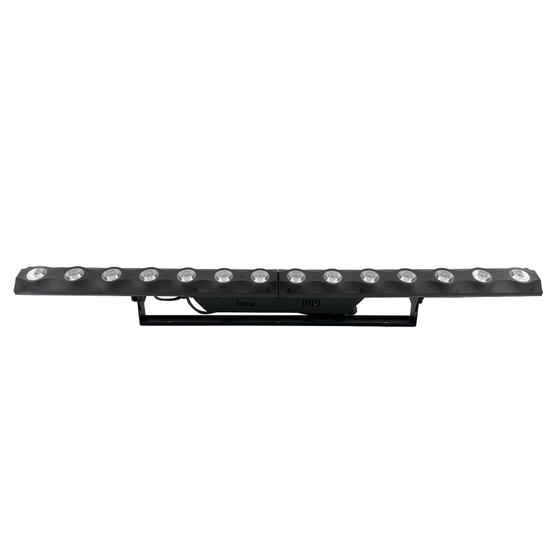

Kit 6 ribalta showtech 2 em 1 st-14bslx

KIT COM 6 RIBALTAS SHOWTECH 2 EM 1 BX 379 ST-14BSLX

14 Leds Cree Ambar
- 56 5050SMD Leds RGB
- Canais DMX: 6 - 8 - 12 - 60
- 22 Funções Automáticas pré programadas
- Controle: Auto - Som - DMX - Master - Slave
- Dimmer Linear 0 a 100%
- Dimensão: 93 x 8 x 8cm
- Peso 5,5kg

? KEYS INSTRUCTION

No Show Function
1 Addr A001---A512 address
2 Chnd 6CH, 8CH, 12CH,60CH chose
3 Slnd Mast ,SL1,SL2 master salve mode
sl1 mast mode
sl2 slave mode
5 SouN Su0 Su59,sound mode. Se0-se99 sound Sensitivity

6 Auto Au0-59 auto mode,sp0-9 auto speed
7 Colo Co1-co15 color maro
8 nanu Red green blue white chose color
9 Disp Display Reverse
10 ver V12 verson
v
? DMX MODE

6 Channels Mode
Channel Value Function
CH1 0-255 Dimmer red 0-100%
CH2 0-255 Dimmer green 0-100%
CH3 0-255 Dimmer blue 0-100%
CH4 0-255 Dimmer White 0-100%
CH5 000-007 No function
008-12 Color chase 1
13-16 Color chase 2
17-20 Color chase 3
21-24 Color chase 4
?????? ??????
227-247 Color chase 59
CH6 0-255 Speed control slow-fast (only when show
White dimmer mode 1-16 is active)

8 Channels Mode
Channel Value Function
CH1 0-255 All dimmer 0--100%
CH2 0-255 strobe
CH3 0-255 Dimmer red 0-100%
CH4 0-255 Dimmer green 0-100%
CH5 0-255 Dimmer blue 0-100%
CH6 0-255 Dimmer White 0-100%
CH7 000-007 No function
008-12 Color chase 1
13-16 Color chase 2
?????? ??????
227-247 Color chase 59
248-255 sound controlled strobe
CH8 0-255 Speed control slow-fast (only when show
mode 1-16 is active)

12 Channels Mode
Channel Value Function
CH1 0-255 All dimming
CH2 0-255 Strobe
CH3 0-255 Red 1 0-100%
CH4 0-255 Green 1 0-100%
CH5 0-255 Blue 1 0-100%
CH6 0-255 White1 0-100%
CH7 0-255 Red 2 0-100%
CH8 0-255 Green 2 0-100%
CH9 0-255 Blue 2 0-100%
CH10 0-255 White2 0-100%
CH11 000-007 No function
008-012 Color Chase 01
013-016 Color Chase 02
017-020 Color Chase 03
021-24 Color Chase 04
?????? ??????
223-226 Color Chase 58
227-247 Color Chase 59
248-255 Sound active
CH12 0-255 Chase Speed Slow To Fast

52 Channels Mode
Channel Value Function
CH1 0-255 All dimming
CH2 0-255 Strobe
CH3 0-255 Red 1 0-100%
CH4 0-255 Green 1 0-100%
CH5 0-255 Blue 1 0-100%
CH6 0-255 White1 0-100%

CH7 0-255 Red 2 0-100%
CH8 0-255 Green 2 0-100%
CH9 0-255 Blue 2 0-100%
CH10 0-255 White2 0-100%
CH11 0-255 Red 3 0-100%
CH12 0-255 Green 3 0-100%
CH13 0-255 Blue 3 0-100%
CH14 0-255 White3 0-100%
CH15 ??? ??????
??? ??????
??? ??????
CH50 0-255 Red 11 0-100%
CH51 0-255 Green11 0-100%
CH52 0-255 Blue11 0-100%
CH53 0-255 White11 0-100%
CH54 0-255 Red 12 0-100%
CH55 0-255 Green 12 0-100%
CH56 0-255 Blue12 0-100%
CH57 0-255 White12 0-100%
CH58 000-007 No function
CH59 008-012 Color Chase 01
013-016 Color Chase 02
017-020 Color Chase 03
021-24 Color Chase 04
?????? ??????
223-226 Color Chase58
227-247 Color Chase 59
248-255 Sound active
CH60 0-255 Chase Speed Slow To Fast
